Fault Domain vs Update Domain in Azure: Demystifying High Availability
When designing applications for the cloud, availability is often just as important as performance and scalability. In Microsoft Azure, two key concepts help ensure that your workloads remain resilient and available: Fault Domains (FDs) and Update Domains (UDs).
Although they sound similar, each solves a very different problem. Let’s break them down.
🔹 Fault Domain (FD) – Protecting Against Hardware Failures
A Fault Domain is a logical grouping of physical hardware in an Azure datacenter that shares a common power source and network switch.
👉 Think of it as a rack of servers.
If that rack experiences a failure (power, network, or hardware), all VMs in that rack could go down.
How Azure helps:
When you deploy VMs in an Availability Set, Azure automatically spreads them across multiple Fault Domains.
This ensures that if one rack fails, your entire application doesn’t go offline.
Example:
VM1 → FD1 (Rack 1)
VM2 → FD2 (Rack 2)
If Rack 1 fails, VM2 is still available to serve users.
✅ Fault Domains protect against physical/hardware failures.
🔹 Update Domain (UD) – Protecting Against Planned Maintenance
Microsoft regularly updates the host infrastructure with patches, OS updates, and security fixes. During these planned maintenance events, VMs may need to be restarted.
If all your VMs were updated at once → downtime!
How Azure helps:
Azure divides your VMs into Update Domains.
Updates are applied one Update Domain at a time.
While VMs in UD1 are being updated (and may temporarily restart), VMs in UD2, UD3, etc., remain online.
Example:
VM1 → UD1
VM2 → UD2
If Azure is patching UD1, only VM1 restarts while VM2 continues serving traffic.
✅ Update Domains protect against downtime during planned maintenance.

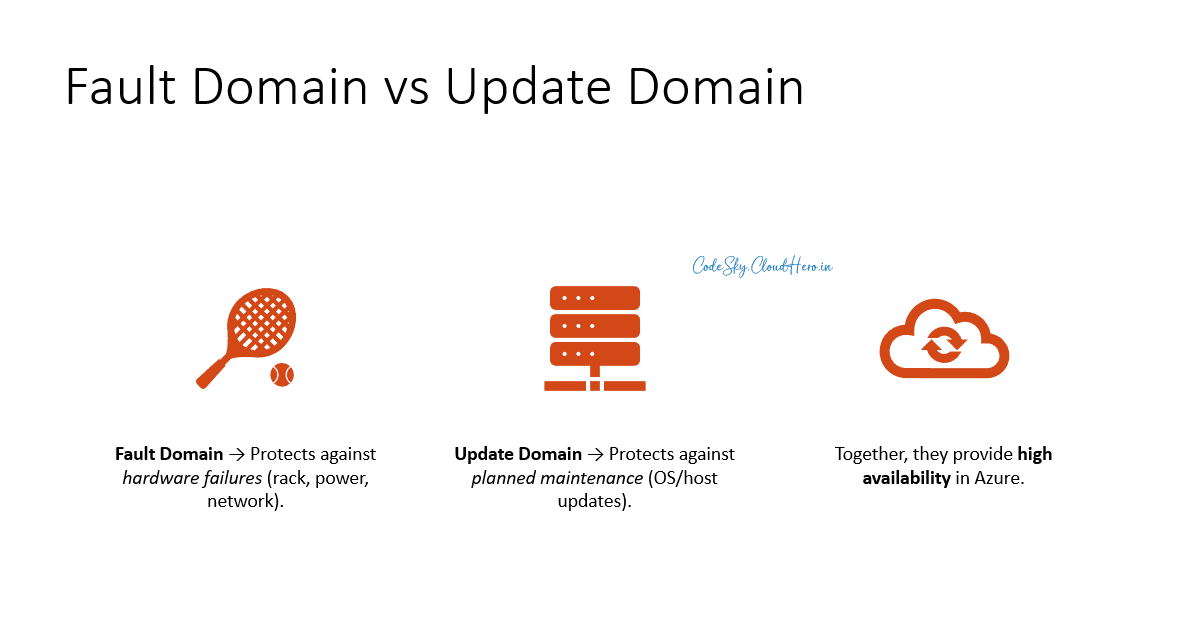

🔹 Fault Domain vs Update Domain — The Key Difference
| Feature | Fault Domain (FD) 🚧 | Update Domain (UD) 🔄 |
| Protects Against | Physical hardware failure (rack, power, network) | Planned maintenance (patching, updates) |
| Grouping Basis | Common power & network | Update scheduling groups |
| Failure Type | Unplanned outage | Planned maintenance restart |
| Example | Rack-level power loss | Host OS update by Azure |
| Ensures | Hardware redundancy | Continuous availability during updates |
🔹 How They Work Together
When you create an Availability Set, you define:
Number of Fault Domains (usually 2–3)
Number of Update Domains (up to 20)
Azure then distributes your VMs across both.
Example Scenario:
You deploy 4 VMs in an Availability Set with 2 FDs and 2 UDs.
Azure might place them like this:
VM1 → FD1, UD1
VM2 → FD2, UD1
VM3 → FD1, UD2
VM4 → FD2, UD2
This way:
If Rack 1 (FD1) fails, VMs in FD2 still run.
If UD1 is being updated, VMs in UD2 still run.
👉 Together, Fault Domains and Update Domains ensure resilience against both unplanned failures and planned maintenance.
🔹 Final Thoughts
High availability in Azure isn’t just about having more servers — it’s about distributing them smartly across both Fault Domains and Update Domains.
Fault Domains = Protection against hardware failure
Update Domains = Protection against maintenance downtime
By leveraging these concepts with Availability Sets or Availability Zones, you can design cloud-native applications that are resilient, reliable, and always ready to serve users.
💬 What about you? Do you design your workloads with Availability Sets, or have you shifted to Availability Zones for even stronger resilience?
